ELECTRIC RAIL SYSTEM

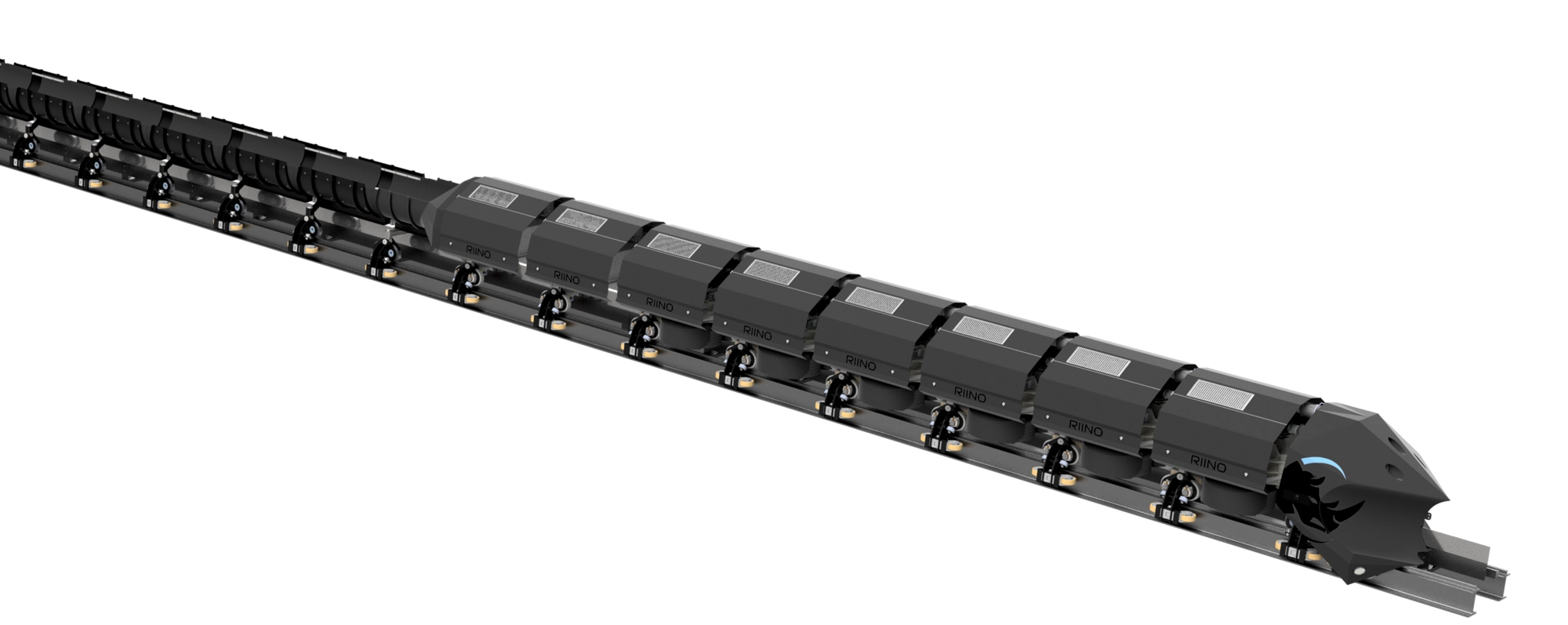

RIINO ZERO-EMISSION MONORAIL

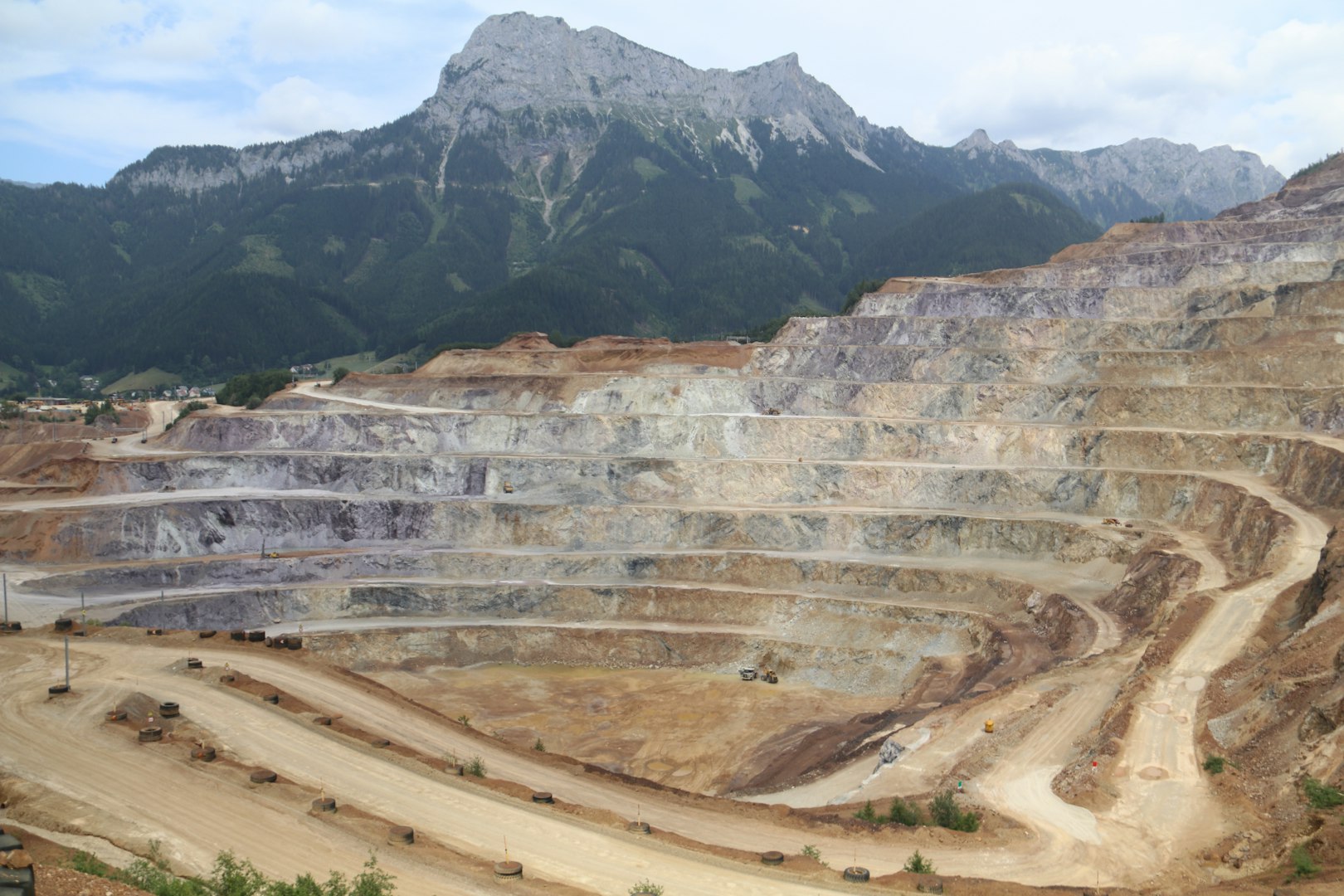

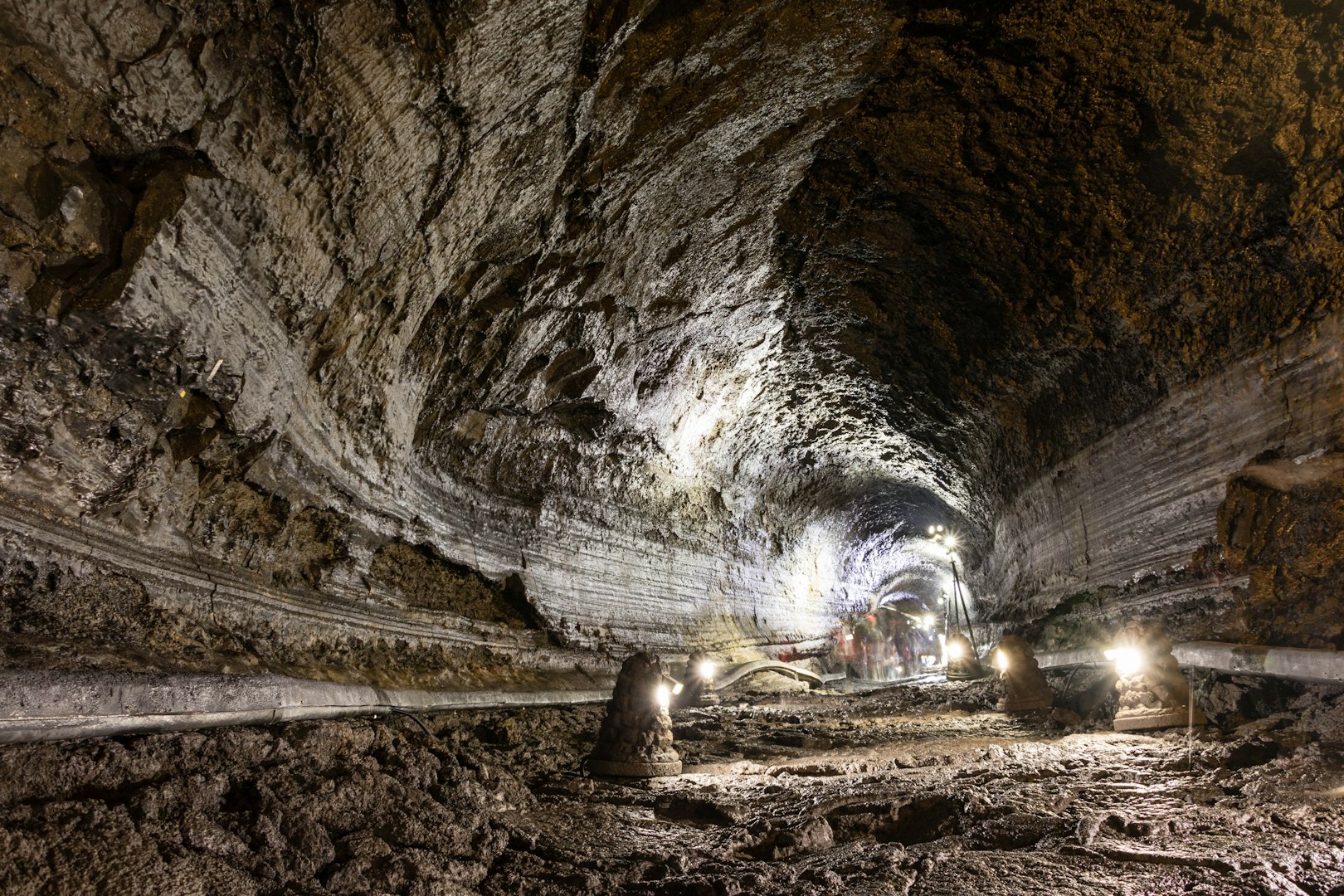

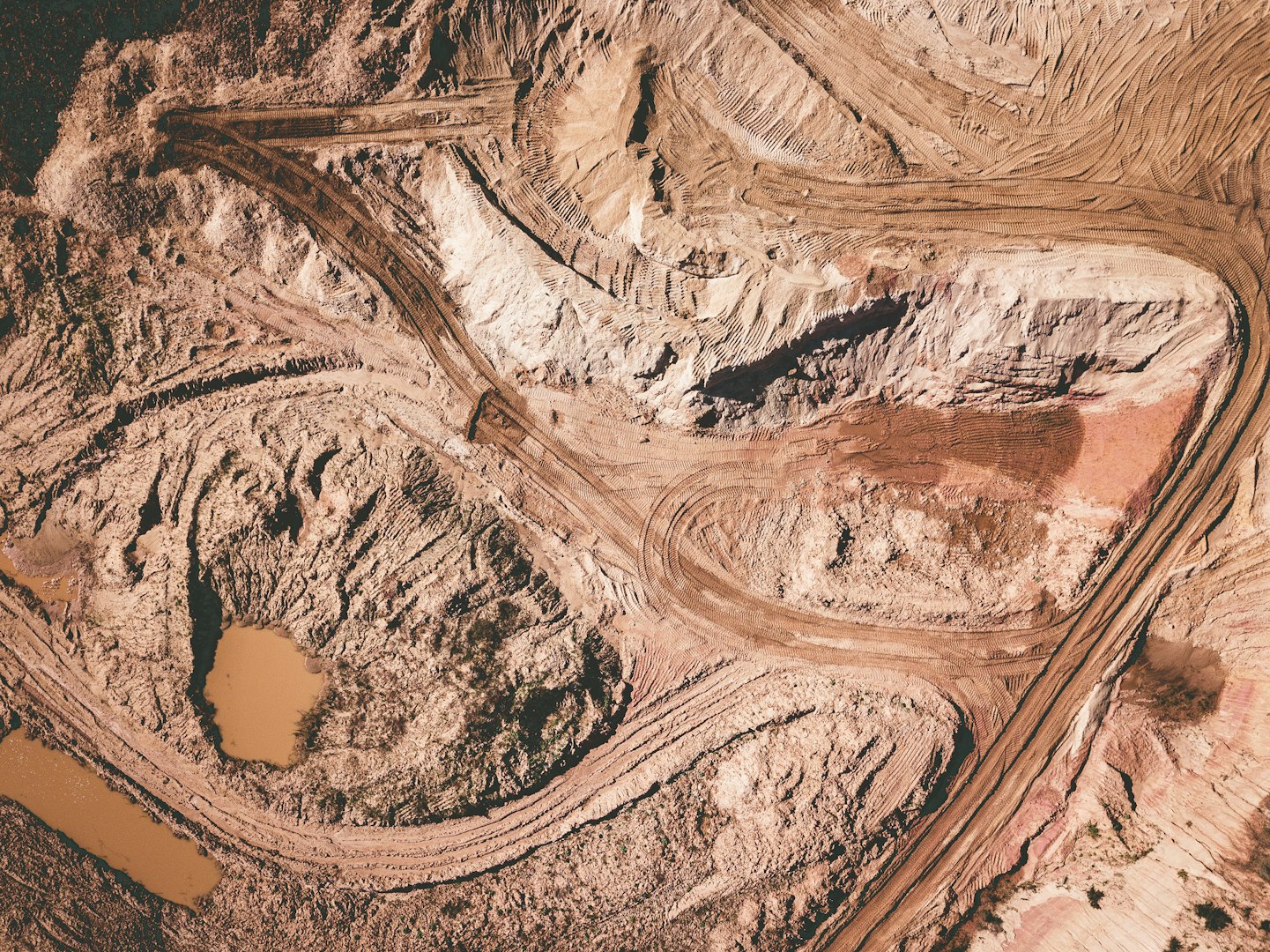

RIINO IS CHANGING THE WAY WE MINE™ WITH CLEAN INNOVATIVE TECHNOLOGY FOR OPEN-PIT AND UNDERGROUND MINING OPERATIONS GLOBALLY.

TECHNOLOGY HIGHLIGHTS

Increased mine production capacity at lower cost.

Reduced mining energy consumption and GHG emissions.

Complete autonomous operation.

Reduced environmental risk and long-term liabilities.

TECHNOLOGY BENEFITS

78%
Haulage OPEX savings
50%
less CAPEX vs. competitors
100% Electric
NET-ZERO OPERATION
4X
Faster Installation

LOWERING HAULAGE OPERATIONAL COSTS by 78%

The RIINO zero-emission monorail provides significant cost savings to any haulage operation. Some of these features include:
  • Complete electric operation

  • Full autonomous control

  • Rail-based transportation efficiency

  • Steep road grade travel (>20% inclines)

  • Minimal electrical infrastructure

  • Low equipment maintenance

  • No required road maintenance

  • No productivity delay in poor weather conditions

  • System safeguards that eliminate train derailments

  • OPEX Savings Example

    The underground haulage costs represented are common decline ramp operation figures and will fluctuate according to site specific variables. RIINO haulage savings are unique to each application and are validated through engineering design and operation. Values are in CDN currency.

Underground haulage costs

RIINO TECH SPECS

Payload Capacity                                 400 Tonnes (0% Grade) / 120 Tonnes (18% Grade)
Travel Speeds                                     80 KPH (0% Grade) / 10KPH (18% Grade)
Ambient Operating Temperature            -30°C    to    +40°C
Power Supply                                     750VDC Busbar
Road Width Required                          1.8m (6.0')
Minimum Turn Radius                          7.6m (25.0')
Lump Size of Transported Material        700mm (28") Minus

Design Your System...

RIINO Inc. works closely with each client to determine the system requirements that will maximize cost savings and improve your specific haulage operation.
  • Engineering design studies
  • Workshop discussions
  • Site visit reviews
  • Cost and performance comparative analysis
  • Construction methodologies
  • Project budgeting and scheduling
